Posterior Staphyloma in Pathologic Myopia

Retinal Physician January 1, 2017

Posterior staphyloma, the posterior outpouching of the wall of the eye, is an important component of the diagnosis of pathologic myopia; indeed, it is one of the hallmarks of pathologic myopia.1-5 With the exception of inferior staphyloma related to tilted disc syndrome, it does not occur in pathologies other than pathologic myopia. Thus, the presence of staphyloma is specific to pathologic myopia and critically important in differentiating simple school myopia with good best corrected visual acuity (BCVA) and pathologic myopia that could cause the loss of BCVA.

This review shows the current definition, clinical characteristics, and a classification based on the recent imaging technologies for posterior staphyloma. Future approaches to treat and prevent staphyloma are also mentioned.

DEFINITION OF POSTERIOR STAPHYLOMA

There is some confusion about the definition of posterior staphyloma. The steepened curve of the posterior sclera, caused by an axial elongation, has tended to be confused with a staphyloma in some optical coherence tomography (OCT) studies.

In Pathologic Myopia2 (Figure 1), Spaide clearly defines posterior staphyloma as “an outpouching of the wall of the eye that has a radius of curvature that is less than the surrounding curvature of the wall of the eye.” The author added nasally distorted eye shape to the definition based on results of three-dimensional magnetic resonance imaging (3D MRI) study.4

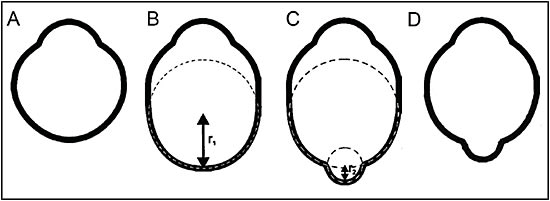

Figure 1. Definition of a posterior staphyloma (modified from reference #2). A. Normal eye shape. B. Axial length elongation occurring in the equatorial region that does not induce any alteration in the curvature of the posterior part of the eye. This eye would have axial myopia, but no staphyloma. C. A second curvature develops in the posterior portion of the eye, and this second curvature has a shorter radius (r2) of curvature than the surrounding eye wall (r1). This secondary curve is due to a staphyloma. D. Posterior staphyloma can also develop in eyes without high axial myopia. The deformity of posterior segment characterized by staphyloma; it therefore, can independently occur from an elongation of the equatorial region.
Figure 1. Definition of a posterior staphyloma (modified from reference #2). A. Normal eye shape. B. Axial length elongation occurring in the equatorial region that does not induce any alteration in the curvature of the posterior part of the eye. This eye would have axial myopia, but no staphyloma. C. A second curvature develops in the posterior portion of the eye, and this second curvature has a shorter radius (r2) of curvature than the surrounding eye wall (r1). This secondary curve is due to a staphyloma. D. Posterior staphyloma can also develop in eyes without high axial myopia. The deformity of posterior segment characterized by staphyloma; it therefore, can independently occur from an elongation of the equatorial region.

Staphyloma also can occur in eyes that do not have long axial length. Curtin1 showed that in eyes with type I staphyloma, the most common type, the axial length ranged from 25 mm to 38 mm. He therefore emphasized that axial length was not a reliable marker to define pathologic myopia, and he concluded that pathologic myopia should be defined by the presence of staphyloma. Wang et al6 recently reported clinical features of staphylomas in eyes whose axial lengths measured fewer than 26.5 mm. Thus, outpouching of the wall of eyes without long axial length is also considered to be posterior staphyloma (Figure 1D).

Kyoko Ohno-Matsui, MD, PhD, is a professor in the Department of Ophthalmology and Visual Science and chief of the High Myopia Clinic, both at Tokyo Medical and Dental University. She reports no financial interest in any products mentioned in this article. Dr. Ohno-Matsui can be reached via e-mail at k.ohno.oph@tmd.ac.jp.

METHODS TO DETECT POSTERIOR STAPHYLOMA

Problems with Conventional Methods

The most common methods to detect staphylomas have been color fundus photography and ultrasonography. Especially, conventional 50° fundus photos are widely used in many epidemiological studies. However, most staphylomas involve wide areas of the fundus (especially the upper and temporal direction), and thus the entire extent of the staphyloma does not fit within the 50° field of view of conventional fundus photographs (Figure 2). Similarly, in most cases, staphylomas are too wide to fit into the length of an OCT scan (Figure 3).

Figure 2. Fundus photo with staphyloma (both 50 degree and Optos). A. A 50-degree photo of right fundus shows diffuse chorioretinal atrophy, however, the presence of staphyloma is not obvious. B. Widefield fundus image by Optos clearly shows the border of wide staphyloma (outlined by arrowheads).
Figure 2. Fundus photo with staphyloma (both 50 degree and Optos). A. A 50-degree photo of right fundus shows diffuse chorioretinal atrophy, however, the presence of staphyloma is not obvious. B. Widefield fundus image by Optos clearly shows the border of wide staphyloma (outlined by arrowheads).

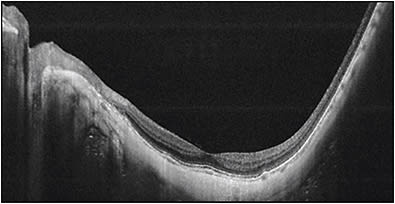

Figure 3. Steepened scleral curvature by OCT, which is confused with staphyloma. Swept-source OCT image across the fovea and the optic nerve shows the scleral curvature is steepened. However, there is no outpouching of the limited area of posterior sclera, suggesting posterior staphyloma.
Figure 3. Steepened scleral curvature by OCT, which is confused with staphyloma. Swept-source OCT image across the fovea and the optic nerve shows the scleral curvature is steepened. However, there is no outpouching of the limited area of posterior sclera, suggesting posterior staphyloma.

3D MRI

To overcome these problems, Moriyama and the author4,7,8 established a new technique called 3D MRI to analyze the entire shape of the eye (Figure 4). The 3D MRI technique is well suited to examine the eye shape over a wide area that can encompass even a large posterior staphyloma from any angle. The author used 3D MRI and reported posterior outpouching of the globe, suggesting staphyloma was observed in 50.5% of the eyes with mean axial length of 30.0 mm.4 More recently, the author used a combination of 3D MRI and Optos in Japanese and Spanish patients and reported a similar prevalence (55% of the eyes with mean axial length of 30.5 mm).9 These data also showed that even among very long eyes (axial length of 30 mm) about a half of them do not have posterior staphylomas; they were simply elongated in an anteroposterior direction.9

Figure 4. 3D MRI images of the globe. A. 3D images are created by volume rendering based on T2-weighed image of MRI. Then, the images of the eye are extracted. B and C. 3D MRI images of an emmetropic eye. The emmetropic eye is spherical and symmetric in the images viewed from the inferior (B) and nasal (C) positions. D through F. 3D images of the eye with pathologic myopia and posterior staphyloma. Outpouching of the posterior segment, suggesting staphyloma is observed in the images viewed from inferior (D), nasal (E), and back positions. (F).
Figure 4. 3D MRI images of the globe. A. 3D images are created by volume rendering based on T2-weighed image of MRI. Then, the images of the eye are extracted. B and C. 3D MRI images of an emmetropic eye. The emmetropic eye is spherical and symmetric in the images viewed from the inferior (B) and nasal (C) positions. D through F. 3D images of the eye with pathologic myopia and posterior staphyloma. Outpouching of the posterior segment, suggesting staphyloma is observed in the images viewed from inferior (D), nasal (E), and back positions. (F).

The most predominant type was wide macular staphyloma (74% of eyes with staphyloma), followed by narrow macular staphyloma (15% of eyes with staphyloma).

WIDEFIELDS: FUNDUS IMAGING AND OCT

Despite the usefulness of 3D MRI, it is still difficult to perform in a large population of patients in routine clinical settings. It also remains difficult to perform 3D MRI due to availability and cost. As a surrogate, the author and colleagues4,9 used widefield fundus imaging by the Optos system and analyzed the presence of staphyloma by examining pigmentary abnormalities along the upper edge of staphyloma. However, the disadvantage of widefield imaging lies in a lack of 3D information.

To solve these issues, we are conducting ongoing studies using a prototype ultra-widefield OCT by Canon Inc. (Tokyo) in our institute. In the near future, this technique will become a cost-effective and more available tool to evaluate the presence and types of staphyloma. Different from 3D MRI, widefield OCT can also visualize how the retina and optic nerve are damaged by eye deformity (Figure 5). This is important because it can demonstrate the exact cause of vision-threatening complications in pathologic myopia.

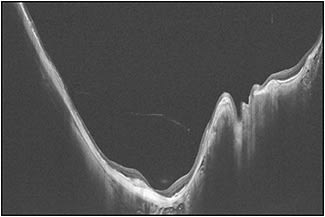

Figure 5. Ultra-widefield OCT image of an eye with pathologic myopia. Scleral curvature is observed in a very wide range (16 mm wide and 5 mm deep), wide enough to cover the entire extent of wide staphyloma.
Figure 5. Ultra-widefield OCT image of an eye with pathologic myopia. Scleral curvature is observed in a very wide range (16 mm wide and 5 mm deep), wide enough to cover the entire extent of wide staphyloma.

CHARACTERISTICS OF POSTERIOR STAPHYLOMA

Prevalence

Because detection methods differ among various studies, making a direct comparison to discern the prevalence of staphyloma is difficult. The prevalence of staphyloma tends to increase with an increase of axial length in general. Curtin10 used stereoscopic funduscopy and reported that the staphyloma was present in 4.8% of the eyes with axial length of 27.5 mm to 28.4 mm. Its prevalence increased to 32.9% in the eyes with axial length between 29.5 mm to 30.4 mm.

CLASSIFICATION

Curtin’s Classification

Based on stereoscopic fundus observations, Curtin1 classified posterior staphylomas in eyes with pathologic myopia into 10 types (Figure 6). Types I to V were considered primary staphylomas and types VI to X were combined staphylomas. This is the most frequently used classification; however, it is determined from ophthalmoscopic appearances, which might be rather subjective.

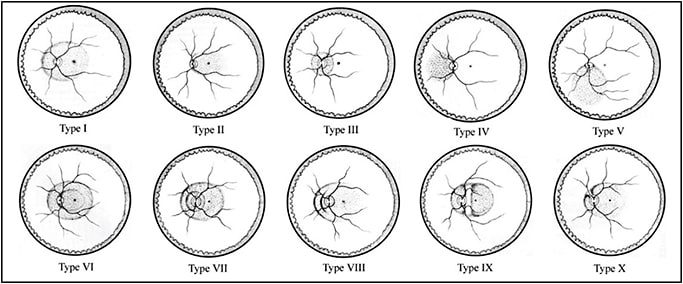

Figure 6. Curtin’s classification of posterior staphyloma. Types I through V are classified as primary staphyloma, and types VI through X are classified as combined staphyloma. The latter is a combination of primary staphylomas.
Figure 6. Curtin’s classification of posterior staphyloma. Types I through V are classified as primary staphyloma, and types VI through X are classified as combined staphyloma. The latter is a combination of primary staphylomas.

The Author’s Modified Classification

To overcome these issues with Curtin’s classification, the author4 determined the type of staphylomas based on the shape of the entire eye using scans by 3D MRI. To simplify Curtin’s classification, the author analyzed only the contour of the outermost border of staphylomas. This resulted in Curtin types VI to X being placed into the type I category. The staphyloma type is renamed according to its location and distribution; this facilitates with memorization. (Figure 7).

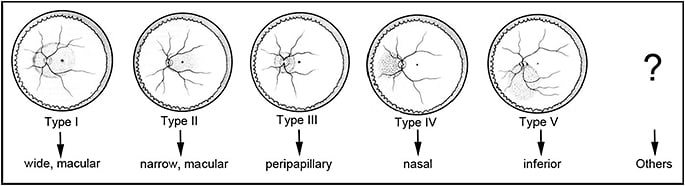

Figure 7. The author’s classification of posterior staphyloma. Only the contour of the outermost staphyloma border is considered. This results in the Curtin types VI to X being placed into the type I category. Also, the staphyloma type has been renamed based on its location and distribution; this facilitates memorization.
Figure 7. The author’s classification of posterior staphyloma. Only the contour of the outermost staphyloma border is considered. This results in the Curtin types VI to X being placed into the type I category. Also, the staphyloma type has been renamed based on its location and distribution; this facilitates memorization.

In Pathologic Myopia, Spaide published images of staphylomas that do not belong in any type in Curtin’s classification.2 Thus, the further improvement of imaging technologies of eye shape (like widefield OCT) may reveal a much more complicated pattern of staphylomas, and new classification is expected to be made according to such future modalities.

Among staphylomas, the wide macular type was by far the most common (74% of all staphylomas) (Figure 8). The narrow macular type followed (14%) (Figure 9). Other types are rare, and they include inferior staphyloma (3%) and nasal staphyloma (2%).

Figure 8. Wide, macular staphyloma (modified from reference #4). A. In widefield fundus image, the upper edge of wide staphyloma is observed as pigmentary abnormalities (arrowheads). B through D. 3D MRI images show posterior outpouching of wide area of posterior segment of the eye in the image viewed from inferior (B), nasal (C), and back (D) views.
Figure 8. Wide, macular staphyloma (modified from reference #4). A. In widefield fundus image, the upper edge of wide staphyloma is observed as pigmentary abnormalities (arrowheads). B through D. 3D MRI images show posterior outpouching of wide area of posterior segment of the eye in the image viewed from inferior (B), nasal (C), and back (D) views.
Figure 9. Narrow, macular staphyloma (modified from reference #4). A. In widefield fundus image, the upper edge of narrow staphyloma is observed as pigmentary abnormalities (arrowheads). B through D. 3D MRI images show posterior outpouching of narrow area of posterior segment of the eye in the image viewed from the inferior (B), nasal (C), and back views (D). The eye looks like a strawberry.
Figure 9. Narrow, macular staphyloma (modified from reference #4). A. In widefield fundus image, the upper edge of narrow staphyloma is observed as pigmentary abnormalities (arrowheads). B through D. 3D MRI images show posterior outpouching of narrow area of posterior segment of the eye in the image viewed from the inferior (B), nasal (C), and back views (D). The eye looks like a strawberry.

CLINICAL SIGNIFICANCE OF STAPHYLOMAS

Eyes with posterior staphyloma have been reported to have worse outcome functionally and structurally than the eyes with simple axial myopia but without staphyloma.

The author4 investigated how staphylomas affect the functional and anatomical properties of the eye and showed that eyes with staphylomas had significantly worse BCVA and more eyes had patchy chorioretinal atrophy and myopic choroidal neovascularization than eyes without evident staphylomas. These data confirmed that the formation of staphylomas had a significant unfavorable effect on patients with pathologic myopia.

This detrimental effect might be due to the great expansion of the area of the posterior pole of the eye, as suggested by Spaide.2 As shown in Figure 1, the posterior fundus is stretched even by a simple elongation of the axial length in axial myopia, but the area could not be doubled because the equatorial region mainly elongates and contributes to axial length increase. However, when an outpouching develops, the original area including macula and optic nerve could be greatly expanded and could double. So, it is easy to expect that the mechanical expansion of the occupied area is no comparison between the eyes with and without staphylomas.

TOWARD FUTURE TREATMENTS TARGETING STAPHYLOMAS

Future therapeutic approaches for pathologic myopia would be to prevent and treat the staphylomas, because staphylomas may be a cause of worse visual and anatomical outcome for patients with pathologic myopia. Although some lesions of myopic maculopathy have treatment options (like antivascular endothelial growth factor therapies for myopic choroidal neovascularization and surgeries for myopic traction maculopathy), visual improvements are limited in most cases.

In addition, other lesions (chorioretinal atrophy and optic nerve damage) have no treatments to improve vision. Thus, preventive therapies targeting staphylomas before serious complications occur would be ideal and expected. These could include scleral collagen crosslinking,11 scleral reinforcement, and scleral regeneration. Shinohara and colleagues12 recently succeeded in preventing myopia in rat models of experimental myopia by regenerating scleral collagen by an implantation of skin fibroblasts.

In addition, Jonas13 have found that the status of Bruch’s membrane may alter the scleral curvature. Thus, in the future, therapies targeting Bruch’s membrane may also become a promising approach to prevent staphyloma development.

CONCLUSION

As Curtin suggested some 40 years ago, posterior staphyloma is the most important feature of pathologic myopia. Because staphylomas occur even in eyes without long axial length and the since staphyloma development significantly affects the outcome of myopic patients, pathologic myopia should be considered, by definition, by the presence of staphylomas and not by refractive error or axial length.

But some confusion exists between the terms “high myopia” and “pathologic myopia.” The former means “high myopic refractive error” and should be defined by refractive degree. However, the latter has staphylomas and characteristic fundus complications even without long axial length.

Thus, Curtin’s words have been proven to be true: “Posterior staphyloma may give us an unimpeachable basis for the genetic studies of myopia. ... The morphology of posterior staphyloma [c]ould be a much more reliable basis for genetic studies.”

Imaging modalities, like widefield OCT, used to visualize the wide extent of staphylomas are improving. Such improvements could exactly determine the staphylomas in a large population of patients. Quantitative and objective analyses of staphylomas could also become possible, which are important to establish treatment strategies.

“Pathologic myopia” is the only myopia responsible for decreasing BCVA due to its specific complications. Retina specialists have the privilege of seeing patients with pathologic myopia; thus it is expected that we should take a lead in the management of this vision-threatening disease. RP
